Product Description

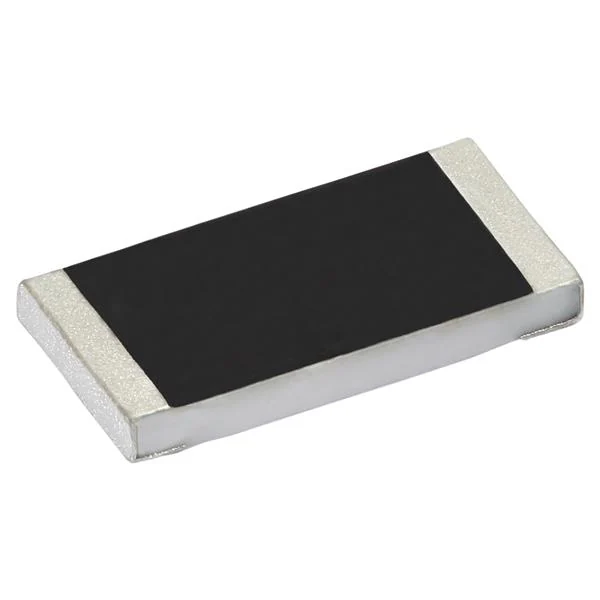

This thick film resistor manufactured by Royalohm is designed for general-purpose applications. With a resistance of 56 kOhm and a tolerance of 1%, this component operates at a power rating of 50 mW (1/20 W) and a voltage level of 25 V. It has a temperature coefficient of 200 PPM/°C and can operate within a temperature range of -55 °C to +155 °C. Offered in reel packaging, this resistor is of the surface-mount (SMD) type and comes in a 0201 (0603 mm) size package. Its length is 0.6 mm, width is 0.3 mm, and height is 0.23 mm. Unit weight is 0.170 mg.

Features

• Manufacturer: Royalohm
• Product Category: Thick Film Resistors - SMD
• Packaging: Reel
• Series: General Purpose Thick Film
• Resistance: 56 kOhm
• Power Rating: 50 mW (1/20 W)
• Tolerance: 1%
• Temperature Coefficient: 200 PPM/°C
• Operating Temperature Min: -55 °C
• Operating Temperature Max: +155 °C
• Voltage Rating: 25 V
• Package Code (inch): 0201
• Package Code (mm): 0603
• Length: 0.6 mm
• Width: 0.3 mm
• Height: 0.23 mm
• Application: General Purpose
• Features: Wrap-Around Termination
• Brand: Royalohm
• Mounting Type: PCB Mount
• Product Type: Thick Film Resistors
• Subcategory: Resistors
• Technology: Thick Film
• Termination Style: SMD/SMT
• Unit Weight: 0.170 mg
