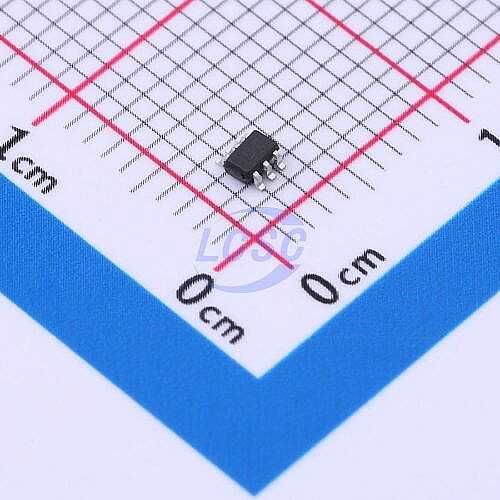

INA199B3DCKR

Name: INA199B3DCKR
Brand: AMP
SKU: TLC-C2653842
Price: 38.52 TRY
Availability: InStock

Ürün Kodu

TLC-C2653842

Üretici Kodu

INA199B3DCKR

Tanım

1 -300mV~26V 5uV 0.4V/us 120dB 28uA 65uA 200V/V SC-70-6 Instrumentation

Üretici

Tedarik Süresi

1-3 Hafta

Paketleme Tipi

Adet

Tavsiye Et Fiyat Alarmı

Specifications - Teknik Özellikler

Özellik	Değer
Package	SC-70-6
Operating Temperature	-40℃~+125℃
Vos - Input Offset Voltage	5uV
Input Offset Voltage Drift(Vos TC)	0.5uV/℃
Single Supply	2.7V~26V
Slew Rate	0.4V/us
Common Mode Rejection Ratio(CMRR)	120dB
Differential Voltage	±26V
-3dB Bandwidth	80kHz
Number of Channels	1
Vcm - Common Mode Voltage	-300mV~26V
Input Voltage Noise Density	25nV/√Hz@1kHz
Quiescent Current	65uA
Features	Zero drift / auto-zero;High-side detection;Low-side detection;Bidirectional detection;Analog output interface;Input filter;Programmable output reference level
Ib - Input Bias Current	28uA
Kazanç	200V/V

Ürün Filtreleri
Barkod	:	C2653842
Tedarikçi Ürün Kodu	:	LC-C2653842

Stok 1180 +

38,52 TL

0,77 USD
