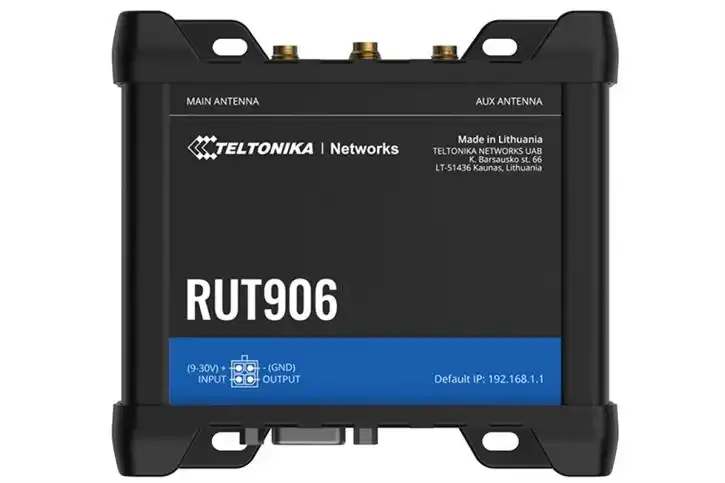

Gösterilen görsel yalnızca temsilidir.
Teltonika RUT906 4G LTE RS232/RS485 Yönlendirici - Teknik Detaylar
RUT906, endüstriyel IoT uygulamaları için tasarlanmış, RS232 ve RS485 seri arayüzlerini, MQTT, BACnet, G/Ç, Ethernet ve daha fazlasını destekleyen hücresel 4G yönlendiricidir. Bu hücresel yönlendirici, GNSS ve çift SIM, otomatik arıza durumunda devreye girme ve yedek WAN gibi arıza emniyet özellikleriyle donatılmıştır.
1. Mobil Özellikler
| Özellik | Açıklama / Detay |
|---|---|
| Mobil Modül | 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps |
| 3GPP Sürümü | Release 9 |
| eSIM* | Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans (*Feature availability varies by order code) |
| SIM Değiştirme* | SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection (*Feature availability varies by order code) |
| Durum Bilgileri | IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC |
| SMS Yönetimi | SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD & Listeler | Supports sending and reading Unstructured Supplementary Service Data messages. Operator block/allow list (by country or separate operators). |
| Bant Yönetimi | Band lock, Used band status display |
| SIM Idle Protection | Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked |
| SIM PIN & APN | SIM PIN code management enables setting, changing, or disabling the SIM card's PIN. Auto APN. |
| Köprü (Bridge) & Geçiş | Direct connection (bridge) between mobile ISP and device on LAN. Router assigns its mobile WAN IP address to another device on LAN. |
2. Kablosuz (Wi-Fi) Özellikler
| Özellik | Açıklama / Detay |
|---|---|
| Kablosuz Mod | 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA). |
| Wi-Fi Güvenliği | WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF). |
| SSID & Kullanıcılar | SSID stealth mode and access control based on MAC address. Up to 100 simultaneous connections. |
| Gelişmiş Wi-Fi | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k). |
| Filtre & Araçlar | Allowlist, blocklist. Wireless QR code generator (automatically enter network). TravelMate (forward Wi-Fi hotspot landing page). |
3. Ethernet ve Ağ Protokolleri
| Özellik | Açıklama / Detay |
|---|---|
| Ethernet Portları | 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX. 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX. |
| Yönlendirme (Routing) | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing. |
| Ağ Protokolleri | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN. |
| VoIP & Bağlantı İzleme | H.323 and SIP-alg protocol NAT helpers. Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection. |
| Güvenlik Duvarı & Yönetim | Port forward, traffic rules, custom rules, TTL target customisation, firewall status page, port management, network topology. |
| Hotspot, DHCP & QoS | Captive portal, Radius, SMS auth, SSO, 9 themes. DHCP static/dynamic, relay, server. QoS / SQM traffic priority, WMM, 802.11e. |
| DDNS, DNS over HTTPS | Supported >77 service providers. DNS over HTTPS proxy enables secure DNS resolution. |
| Yedekleme & Trafik Yönetimi | Wi-Fi WAN, Mobile, VRRP, Wired options (Failover), Load balancing, SSHFS, Real-time monitoring, wireless signal charts, traffic usage history, Port Mirroring. |
4. Güvenlik ve Erişim Kontrolü
| Özellik | Açıklama / Detay |
|---|---|
| Kimlik Doğrulama | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator. |
| Güvenlik Duvarı & Saldırı Önleme | Preconfigured firewall rules, unlimited CLI config, DMZ, NAT, NAT-T, NAT64. DDOS prevention (SYN flood, SSH, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks). |
| VLAN, Kota & Filtre | Port and tag-based VLAN separation. Mobile quota control (data limit, custom period, warning limit). WEB filter (block list, allow list). Access control of SSH, Web, CLI, Telnet. Certificate Manager. |
5. VPN ve Tünelleme Protokolleri
| Protokol | Açıklama / Detay |
|---|---|
| OpenVPN | Multiple clients and a server can run simultaneously, 27 encryption methods (DES-CBC 64, RC2, AES series, GCM, etc.). |
| IPsec | XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES variants with GCM support). |
| Diğer VPN'ler | GRE, GRE tunnel over IPsec, PPTP, L2TP (Client/Server, L2TPv3, over IPsec), Stunnel, DMVPN (Phase 2/3, Dual Hub), SSTP, ZeroTier, WireGuard (client/server), Tinc. |
6. Endüstriyel Protokoller ve IoT Entegrasyonları
| Protokol / Sistem | Açıklama / Detay |
|---|---|
| BacNET & OPC UA | Router, IP, RTU (RS485, USB), multiple BACnet/IP interfaces, Network number assignment, preconfigured BDT entries for BBMD. OPC UA Client, Server (TCP). |
| DNP3 & MODBUS | DNP3 Station/Outstation (RS232, RS485, TCP, USB). MODBUS Server/Client (RTU, TCP, USB), custom registers, 8/16/32-bit formats. |
| Data to Server & MQTT | HTTP(S), MQTT, Azure MQTT. Extract parameters from multiple sources, custom LUA scripting. Modbus MQTT Gateway. |
| DLMS/COSEM & API | DLMS standard utility meter protocol (Client, RS232, RS485, TCP). Teltonika Networks Web API (beta) support. |
| IoT Bulut Platformları | ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub (Direct methods, DPS, Plug and Play), AWS IoT Core (Jobs Support). |
7. Sistem, Donanım ve Fiziksel Özellikler
| Bileşen | Teknik Detay |
|---|---|
| İşlemci, Bellek & GNSS | Mediatek, 580 MHz, MIPS 24KEc | 128 MB RAM (DDR2) | 16 MB SPI Flash. GNSS (GPS, GLONASS, BeiDou, Galileo, QZSS), NMEA 0183, NTRIP, Geofencing. |
| Yazılım & Özelleştirme | RutOS (OpenWrt based Linux OS). Shell, Lua, C, C++, Python, Java. SDK package, GPL customization, Package Manager, RMS, FOTA, TR-069, SNMP, JSON-RPC. |
| Seri Arayüzler (Serial) | RS232: DB9 connector (with RTS, CTS flow control), 300 to 115200 baud rate. RS485: Full Duplex (4 wires) and Half-Duplex (2 wires), 300-230400 baud rate. Console, Serial over IP, Modem. |
| USB & Micro SD | USB 2.0 (Samba share, USB-to-serial, external HDD/flash drive, printer). Micro SD internal slot (up to 2 TB, FAT32, NTFS, ext2/3/4, Samba, DLNA). |
| Giriş / Çıkış (I/O) | Inputs: dry input, galvanically isolated input, analog input (0-24V with 4-20mA), non-isolated input. Outputs: open collector output, SPST relay output. I/O Juggler & events (Email, RMS, SMS). |
| Güç Özellikleri | 4-pin industrial DC power socket, 9–30 VDC (reverse polarity protection, surge protection >31 VDC). Passive PoE over LAN1 (Mode B, 9-30 VDC). Max power consumption < 2 W idle, < 7 W max. |
| Fiziksel Arayüzler | 4 x RJ45 (10/100 Mbps), 2 x SIM slots (Mini SIM - 2FF), Antennas: 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS, 1 x USB A, 1 x DB9 (RS232), 1 x 6-pin (RS485), 10-pin industrial socket for I/O, Reset button. Status LEDs. |
| Kasa ve Boyutlar | Aluminium housing, plastic panels. Dimensions: 109.5 x 50 x 100 mm. Weight: 295 g. Mounting: DIN rail, wall mount, flat surface. |
| Çalışma Ortamı | Operating temperature: -40 °C to 75 °C, Operating humidity: 10% to 90% non-condensing, IP30 ingress protection rating. |
8. Mevzuat, Sertifikalar ve Standartlar
| Kategori | Standartlar / Onaylar |
|---|---|
| Düzenleyici Onaylar | CE, UKCA, RCM, CB, E-mark, ETA-WPC, MTCTE. |
| EMC & RF Standartları | EN 55032/035, EN 61000 series (ESD, Radiated Immunity, EFT, Surge, CS, DIP). EN 301 489 series. EN 301 908-1, -2, -13, EN 300 328. |
| Emniyet (Safety) | CE: EN 62311 | CB: IEC 62368-1:2018. |
9. Sınıflandırma ve Standart Paket İçeriği
| Bilgi | Detay |
|---|---|
| Sınıflandırma Kodları | HS Code: 851762 | HTS: 8517.62.00 |
| Standart Paket İçeriği | Router RUT906 9 W PSU 2x Mobile antennas (magnetic mount, SMA male, 3 m cable) 2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable) GNSS antenna (adhesive, SMA male, 3 m cable) RS485 connector block I/O connector block Ethernet cable (1.5 m) SIM Adapter kit QSG (Quick Start Guide) Packaging box (*Standard package contents may differ based on standard order codes) |
10. Kullanılabilir Sürümler (Available Versions)
| Donanım Sürümü & Bölge | Frekanslar ve Sipariş Kodları |
|---|---|
| RUT906 03**** (eSIM) | Bölge: Europe, The Middle East, Africa, Thailand, Australia, New Zealand Frekanslar: 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28 | 4G (LTE-TDD): B38, B40, B41 | 3G: B1, B8 | 2G: B2, B8 Kodlar: RUT906030200 (UK PSU), RUT906030400 (Universal PSU), RUT906030100 (Mass packing), RUT906030700 (EU PSU) |
| RUT906 0***** | Bölge: Europe, The Middle East, Africa, Thailand, Australia, New Zealand Frekanslar: 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28 | 4G (LTE-TDD): B38, B40, B41 | 3G: B1, B8 | 2G: B2, B8 Kodlar: RUT906000000 (EU PSU), RUT906000200 (UK PSU), RUT906000800 (AU PSU), RUT906000300 (4-way screw terminal), RUT906000400 (Universal PSU), RUT906000C00 (Without PSU), RUT906000100 (Mass packing) |
