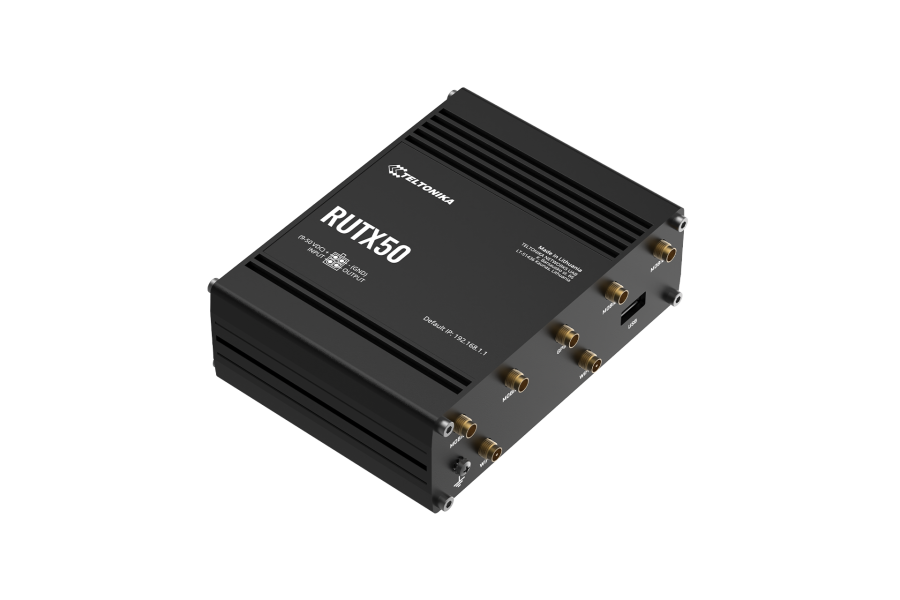

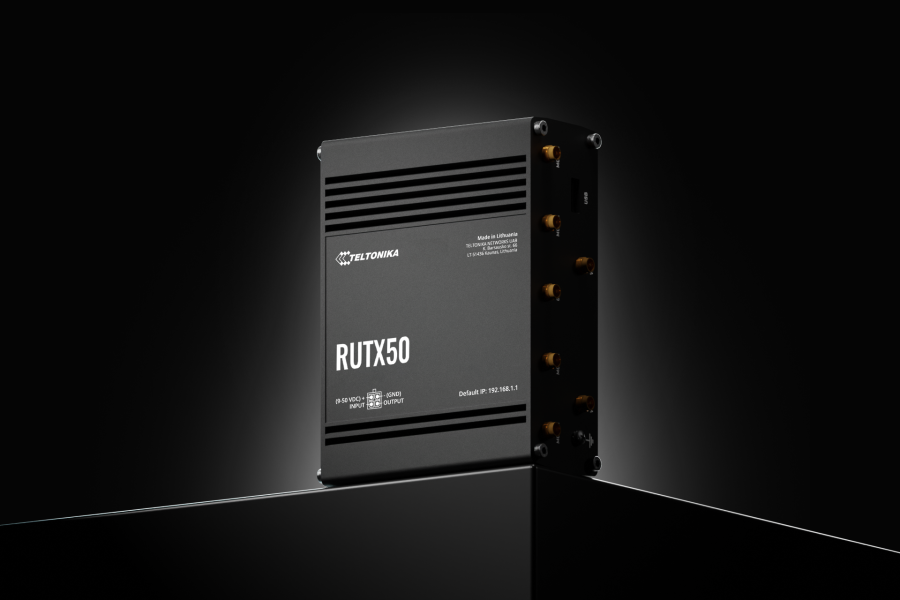

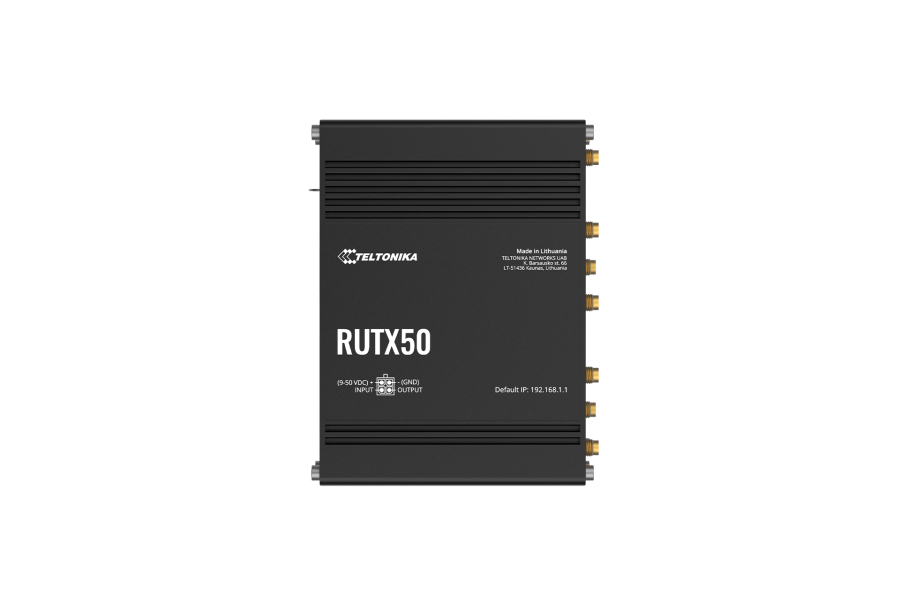

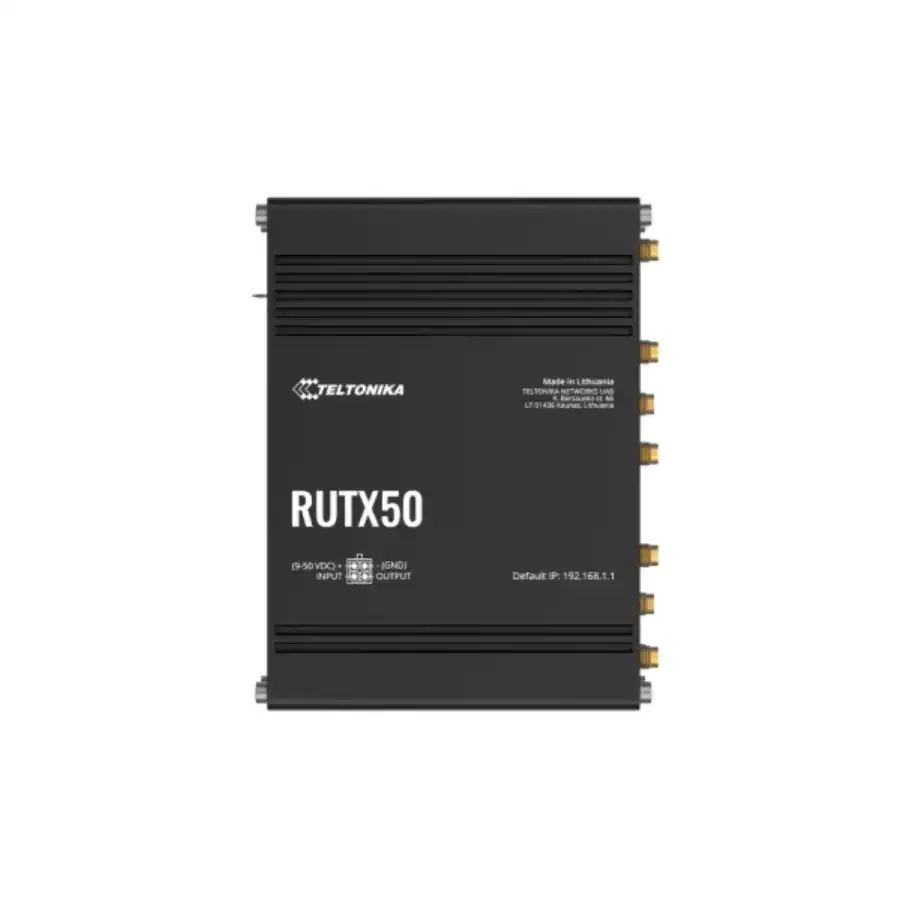

TELTONIKA RUTX50 5G Router

Teltonika RUTX50 Endüstriyel 5G Yönlendirici - Teknik Detaylar

RUTX50, yüksek hızlı ve veri yoğun uygulamalar için 5G mobil iletişim sunan çift SIM kartlı, çoklu ağ yönlendiricisidir. 5 adet Gigabit Ethernet portu ve çift bantlı Wi-Fi ile birlikte, otomatik arıza durumunda devreye girme özelliğiyle veri bağlantısı yedekliliği sağlar. Geriye dönük uyumluluk ve çoklu arayüzler, uzun vadeli genişletilebilirlik ve yükseltme seçeneklerine olanak tanır.

1. Mobil Özellikler

Özellik	Açıklama / Detay
Mobil Modül	5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G LTE Cat 20 up to 2.0 Gbps DL/ 200M Mbps UL; 3G up to 42 DL/ 5.76 UL Mbps
3GPP Sürümü	Release 15/16 depending on the hardware version
eSIM*	Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans. (*Feature availability varies by order code)
SIM Değiştirme*	Dual SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection. (*Feature availability varies by order code)
Durum Bilgileri	IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS Yönetimi	SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD & Listeler	Supports sending and reading Unstructured Supplementary Service Data messages. Operator block/allow list (by country or separate operators).
Çoklu PDN & Grup	Possibility to use different PDNs for multiple network access and services. Band lock, Used band status display.
SIM Koruma & PIN	SIM idle protection service (periodically switch to unused SIM to prevent blocking). SIM PIN code management (setting, changing, disabling). Auto APN.
Köprü (Bridge) & Geçiş	Direct connection (bridge) between mobile ISP and device on LAN. Router assigns its mobile WAN IP address to another device on LAN. Framed routing support behind 5G UE.

2. Kablosuz (Wi-Fi) Özellikler

Özellik	Açıklama / Detay
Kablosuz Mod	802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA).
Wi-Fi Güvenliği	WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF).
SSID & Kullanıcılar	SSID stealth mode and access control based on MAC address. Up to 150 simultaneous connections.
Gelişmiş Wi-Fi	Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k).
Filtre & Araçlar	Allowlist, blocklist. Wireless QR code generator (automatic network entry). TravelMate (forward Wi-Fi hotspot landing page).

3. Ethernet ve Ağ Protokolleri

Özellik	Açıklama / Detay

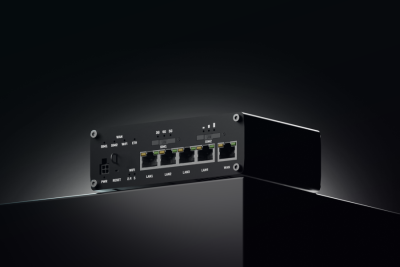

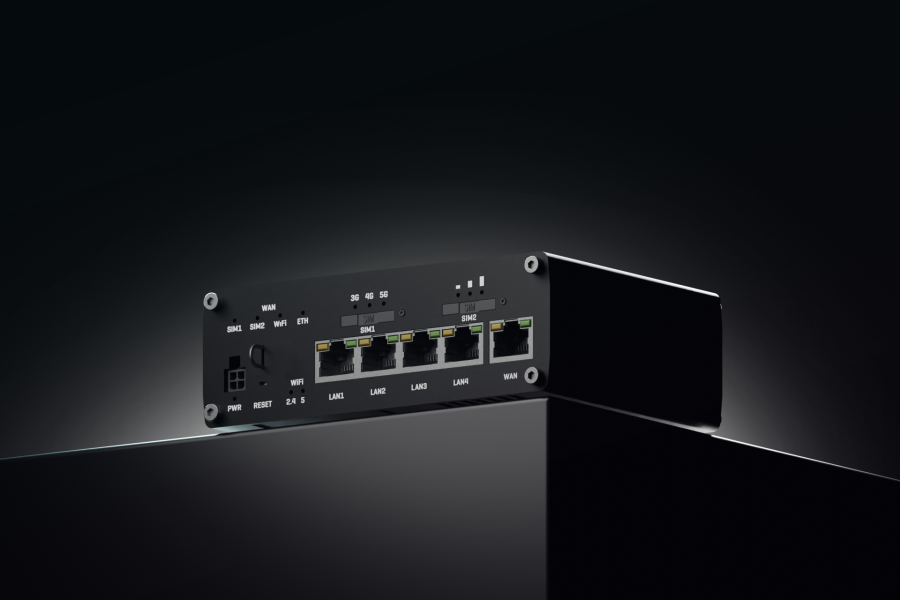

Ethernet Portları	1 x WAN port 10/100/1000 Mbps, 4 x LAN ports 10/100/1000 Mbps (IEEE 802.3, 802.3u, 802.3az, auto MDI/MDIX crossover).
Yönlendirme (Routing)	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing. Initial VRF support.
Ağ Protokolleri	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN.
VoIP & Bağlantı İzleme	H.323 and SIP-alg protocol NAT helpers. Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection.
Güvenlik Duvarı & Yönetim	Port forward, traffic rules, custom rules, TTL target customisation, firewall status page, port management, network topology.
QoS, DDNS & Yedekleme	QoS / Smart Queue Management (SQM), >77 DDNS providers, DNS over HTTPS, Wi-Fi WAN/Mobile/VRRP/Wired failover, load balancing, SSHFS, real-time monitoring and traffic management.

4. Güvenlik, Hotspot ve Erişim Kontrolü

Özellik	Açıklama / Detay
Kimlik Doğrulama	802.1X client, Pre-shared key, digital certificates, X.509, TACACS+, Internal/External RADIUS, IP & login attempts block, time-based login blocking, built-in random password generator.
Saldırı Önleme (IDS/IPS)	DDOS prevention (SYN flood, SSH/HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL, FIN scan attacks). DMZ, NAT, NAT-T, NAT64.
Hotspot (Kısıtlı Portal)	Captive portal, internal/external Radius, Radius MAC authentication, SMS authorisation, SSO, landing page, walled garden, user scripts, groups, limitations, 9 default themes and custom theme support.
VLAN, Kota & TPM	Port and tag-based VLAN separation. Mobile quota control (data limit, period, warning limit). Web filter (block/allow lists). Access control for SSH, Web, CLI, Telnet. TPM 2.0* (*varies by order code) and Certificate Manager.

5. VPN ve Tünelleme Protokolleri

Protokol	Açıklama / Detay
OpenVPN	Multiple clients and a server can run simultaneously, 27 encryption methods (DES, RC2, AES series with CBC/GCM/CFB/OFB options, Blowfish, CAST5).
IPsec	XFRM, IKEv1, IKEv2, with 14 encryption methods (3DES, DES, AES128/192/256 variants with GCM).
Diğer VPN'ler	GRE, GRE over IPsec, PPTP/L2TP (Client/Server, L2TPv3), Stunnel, DMVPN (Phase 2/3, Dual Hub), SSTP, ZeroTier, WireGuard (client/server), Tinc, Tailscale.

6. Endüstriyel Protokoller ve IoT Entegrasyonları

Protokol / Sistem	Açıklama / Detay
OPC UA & MODBUS	OPC UA Client and Server (TCP). MODBUS Server, Client (TCP, USB). Custom register blocks, 8/16/32-bit formats, Modbus MQTT Gateway.
Sunucuya Veri Gönderme	HTTP(S), MQTT, Azure MQTT. Extract parameters from multiple sources and send to single server; Custom LUA scripting.
DNP3 & DLMS/COSEM	DNP3 Station/Outstation (TCP, USB). DLMS Client protocol for utility meter data exchange (TCP, USB).
API & Bulut Platformları	Teltonika Networks Web API (beta). IoT Platforms: ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core, TR-069, MQTT, SNMP, JSON-RPC, RMS.

7. Sistem, Donanım ve Fiziksel Özellikler

Bileşen	Teknik Detay
İşlemci & Bellek	Quad-core ARM Cortex A7, 717 MHz \| 256 MB RAM \| 256 MB FLASH storage.
Yazılım & Özelleştirme	RutOS (OpenWrt based Linux OS). Busybox shell, Lua, C, C++, and Python, Java in Package manager. SDK package, GPL customization, Package Manager, FOTA, RMS support.
Konum Takibi (GNSS)	GPS, GLONASS, BeiDou, Galileo, QZSS. Coordinates via WebUI, SMS, TAVL, RMS. NMEA 0183, NTRIP protocol, configurable multiple geofence zones.
USB & Giriş/Çıkış (I/O)	USB 2.0 (Samba share, external HDD/flash, modem, printer). 1 x Digital Input (0-6V low, 8-30V high), 1 x Digital Output (Open collector, max 30V, 300mA). I/O juggler.
Güç Özellikleri	4-pin industrial DC power socket. Voltage range: 9–50 VDC, reverse polarity protection, surge protection >51 VDC. Passive PoE (LAN1, Mode B, 9-50 VDC). Max power: < 16.5 W (Idle < 4 W).

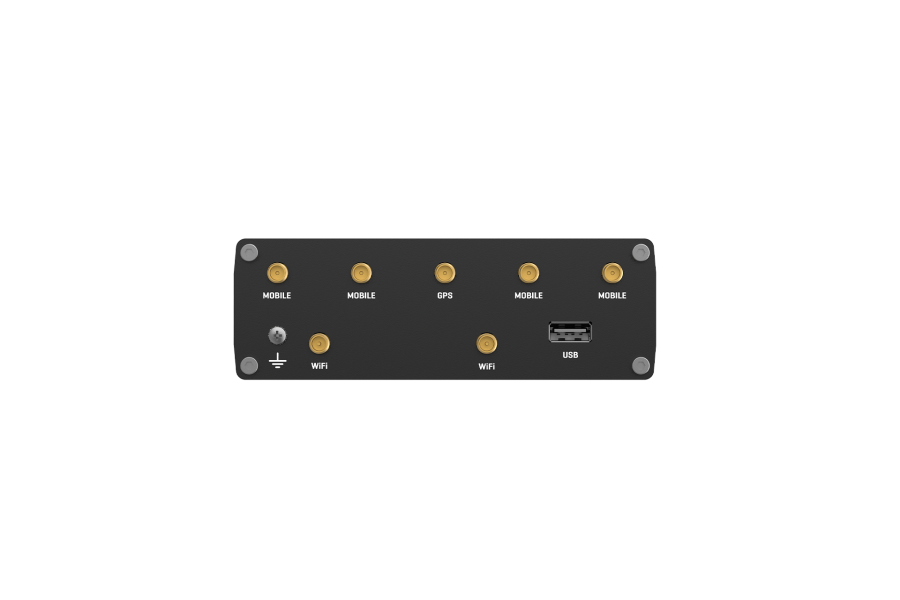

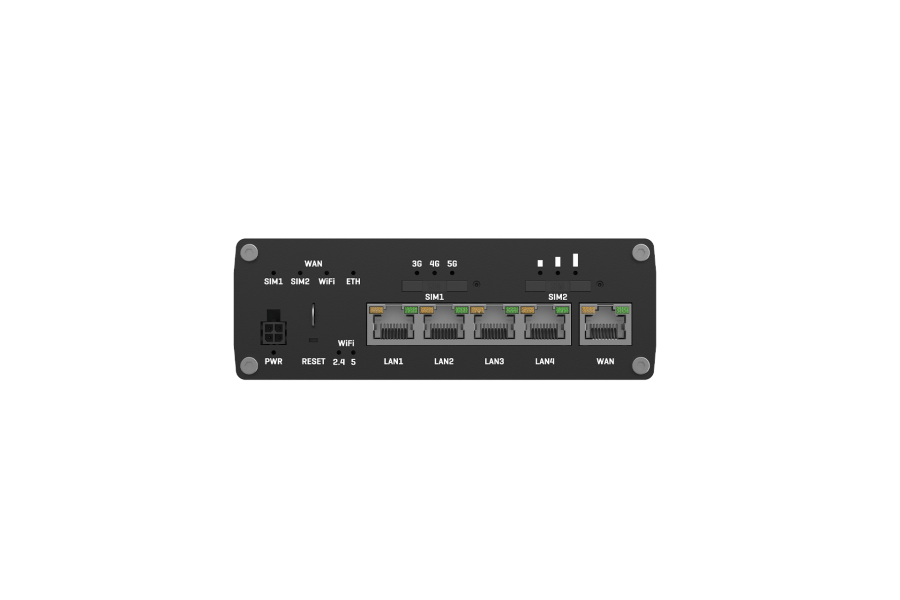

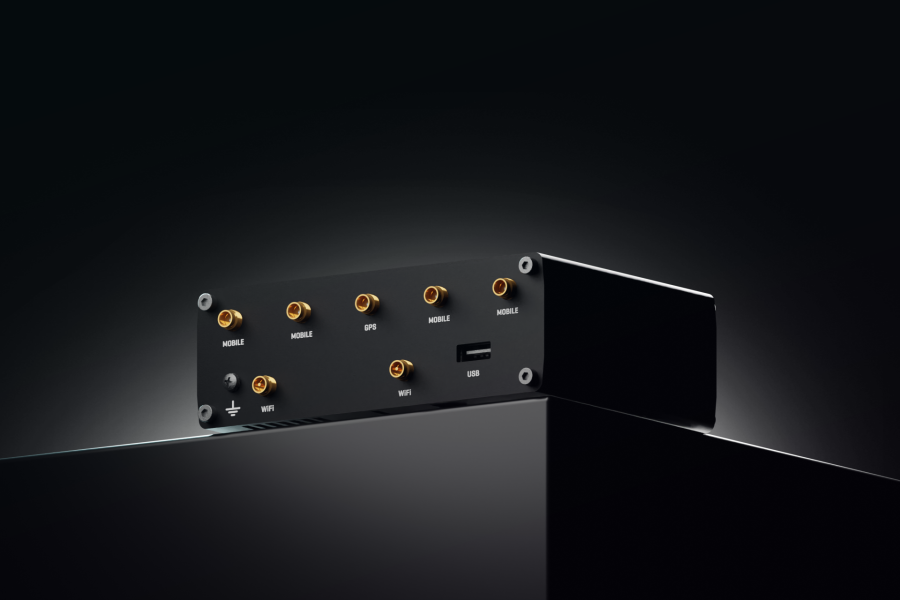

Fiziksel Arayüzler	5 x RJ45 (10/100/1000 Mbps), 2 x SIM slots (Mini SIM - 2FF), 4 x SMA (Mobile), 2 x RP-SMA (Wi-Fi), 1 x SMA (GNSS), 1 x USB A, Reset button, Grounding screw. Status LEDs.

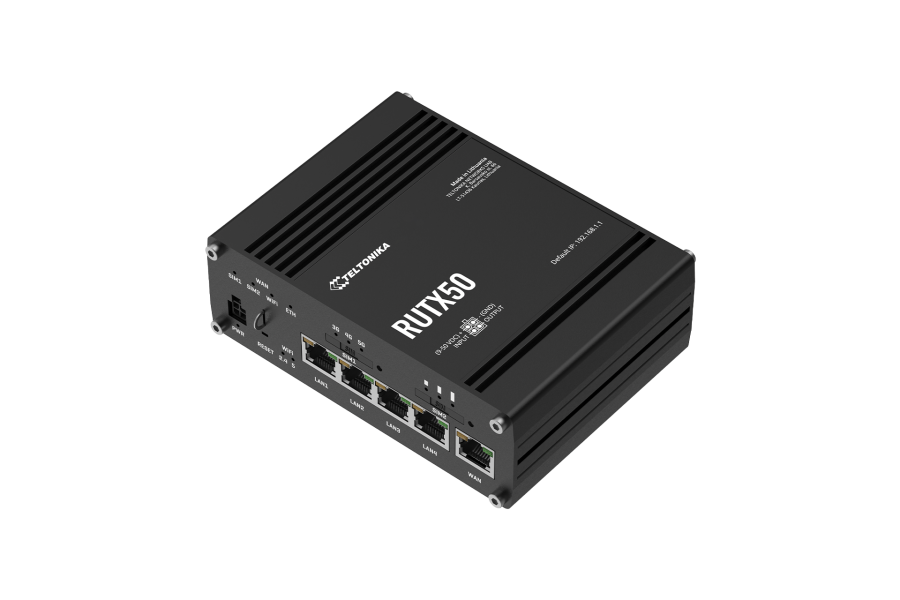

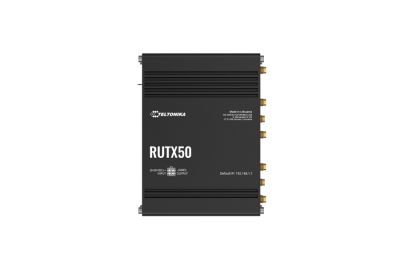

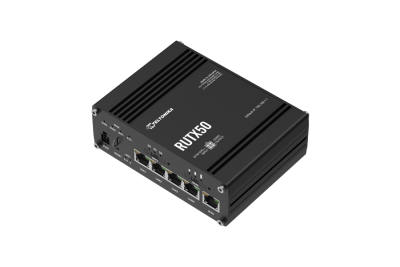

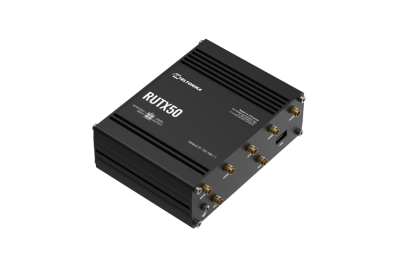

Kasa ve Boyutlar	Anodised aluminium housing and panels. Dimensions: 132 x 44.2 x 95.1 mm. Weight: 533 g. Mounting: DIN rail, wall mount, flat surface.
Çalışma Ortamı	Operating temperature: -40 °C to 75 °C, Operating humidity: 10% to 90% non-condensing, IP30 ingress protection rating.

8. Mevzuat, Sertifikalar ve Standartlar

Kategori	Standartlar / Onaylar
Düzenleyici Onaylar	CE/RED, UKCA, RCM, IMDA, CB, E-mark, SIRIM, ETSI EN 303 645, SDPPI (POSTEL), ETA-WPC, MTCTE. Operator: NOS (Portugal).
EMC Standartları	EN 55032/035, EN 61000-3-2/3-3, EN 301 489 series (1, 3, 17, 19, 52), ESD, Radiated Immunity, EFT, Surge, CS, DIP (EN 61000-4 series).
RF & Safety Standards	EN 300 328, EN 300 440, EN 301 893, EN 301 908 series, EN 303 413. Safety: CE (EN IEC 62368-1, EN 62311), RCM (AS/NZS 62368.1), CB (IEC 62368-1).

9. Sınıflandırma ve Standart Paket İçeriği

Bilgi

Detay

Sınıflandırma Kodları

HS Code: 851762 | HTS: 8517.62.00

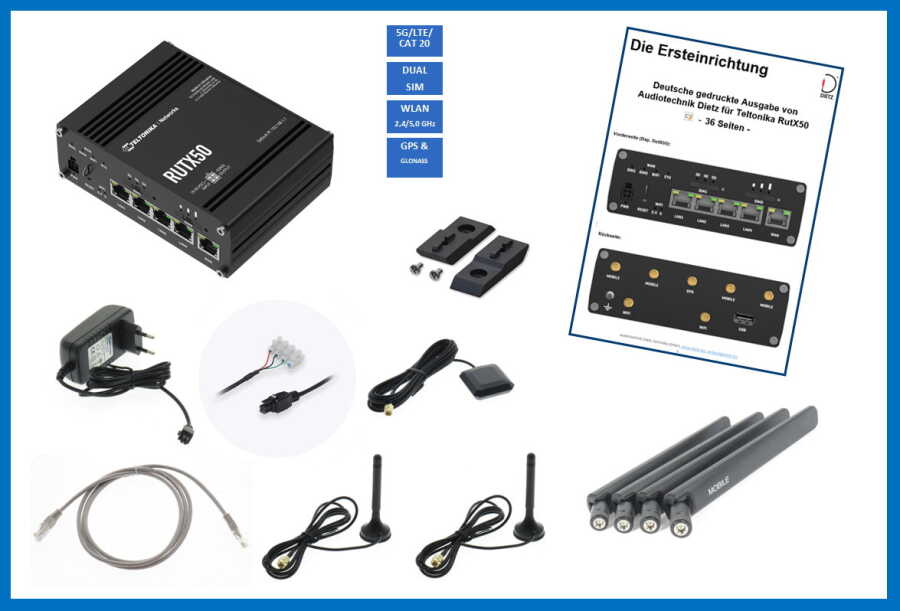

Standart Paket İçeriği

RUTX50 Router

18 W PSU

4 x 5G Mobile antennas (swivel, SMA male)

2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)

1 x GNSS antenna (adhesive, SMA male, 3 m cable)

Ethernet cable (1.5 m)

SIM Adapter kit

QSG (Quick Start Guide)

Packaging box (*Contents may differ based on standard order codes)

10. Ürün Versiyonları ve Desteklenen Frekanslar

Versiyon / Bölge	Desteklenen Bantlar ve Paket Kodları
RUTX50 32**** (EMEA, APAC, Brazil)	5G NR NSA / SA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32 \| 4G (LTE-TDD): B38, B40, B41, B42, B43 3G: B1, B5, B8 Kodlar: RUTX50320000 (EU PSU), RUTX50320100 (UK), RUTX50320200 (AU), RUTX50320500 (Screw terminal), RUTX50320400 (Mass packing)
RUTX50 0***** (Europe, Middle East, Africa, Oceania, Brazil)	5G NR NSA / SA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32 \| 4G (LTE-TDD): B38, B40, B41, B42, B43 3G: B1, B5, B8 Kodlar: RUTX5000AC00 (EU), RUTX50000500 (Screw term), RUTX50000100 (UK), RUTX50000300 (US), RUTX50000200 (AU), RUTX50000400 (Mass)
RUTX50 3***** (EMEA, APAC, Brazil)	5G NR: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n71, n75, n76, n77, n78 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32, B71 \| 4G (LTE-TDD): B38, B40, B41, B42, B43 3G: B1, B5, B8 Kod: RUTX50300000 (EU PSU)
RUTX50 000305 (Thailand)	5G NR NSA: n7, n40, n77, n78 \| SA: n1, n3, n5, n7, n8, n20, n38, n40, n41, n77, n78 4G (LTE-FDD): B1, B3, B5, B7, B8, B20 \| 4G (LTE-TDD): B38, B40, B41, B42, B43 3G: B1, B8 Kod: RUTX50000305 (US PSU)
