TELIT

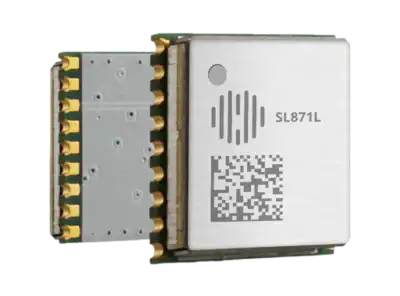

SL871LG3234R001000
Product code
:
T6462Üretici Kodu
:
SL871LG3234R001000
Üretici
:
TELIT
Tedarikçi
:
Demsay Elektronik
Tedarik Süresi
:
2-3 Hafta
Paketleme Tipi
:
Kutu
Product Features
- Frequency band: GPS (L1), GLONASS (L1, FDMA), Galileo (E1), BeiDou (B1)
- Standards: NMEA
- Telit Cinterion NMEA commands
- 99 search and 33 tracking channels
- SBAS supported (WAAS, EGNOS, MSAS, GAGAN), QZSS
- Configurable correction reporting: Default: 1 Hz; Maximum: 10 Hz
- A-GPS: Ephemeris estimates generated locally and by the server
- Jammer rejection
- DC block + additional LNA
- Supports active or passive antenna.
- GNSS low-power (GLP) mode
- Low-power periodic mode
- Antenna detection
Certifications
- RoHS compliant
- RED
Environmental
- 10.1 x 9.7 x 2.4 mm, 18-pin, industry standard
- LLC notched edge package
- Can be surface-mounted with standard SMT equipment.
- Weight: 1 g
- Temperature Range:
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +85°C
Power Supply
- VCC: 2.8-4.3 V
- Type: 3.0-3.6 V
Current Consumption: (GPS + GLO)
- Acquisition: 93 mW
- Tracking: 76 mW
- Standby mode (Vbatt): 50 uW
- PTWS commands
- Software upgradable
- Locally generated estimates (EASY)
- Server-generated estimates (EPO)
